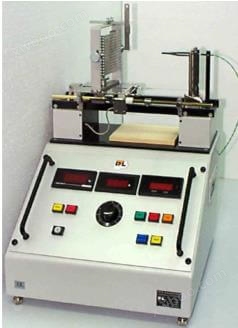

PTL Glow-Wire Test Apparatus T03.35
產品型號
更新時間
2024-10-17廠商性質
瀏覽次數
277產品中心
PRODUCT CATEGORY相關產品
RELATED PRODUCTS詳細介紹
PTL Glow-Wire Test Apparatus?
PTL Glow-Wire Test Apparatus?
| to determine the fire resistance by the fire hazard test. | ||||||||||||||||||||||||||||||||
| Test apparatus according to | IEC 60695-2-10 | :2000-10, | ||||||||||||||||||||||||||||||
| for glow-wire flammability tests for end-products (IEC 60695-2-11), for glow-wire flammability index tests method for materials GWFI (IEC 60695-2-12) and for glow-wire ignitability tests for materials GWIT (IEC 60695-2-12). | ||||||||||||||||||||||||||||||||
| Standard outfit: | ||||||||||||||||||||||||||||||||
| 1 | glow-wire loop of nickel-chromium, with clamping mechanism, | Bitmap | ||||||||||||||||||||||||||||||
| 1 | carriage to be moved by hand, with multiple adjustable holding device for the specimen, | |||||||||||||||||||||||||||||||
| 1 | rail system with ground running surfaces, | |||||||||||||||||||||||||||||||
| 1 | pair of fine ropes with weights for the contact force of 1 N, | |||||||||||||||||||||||||||||||
| 1 | indicating device for the depth of penetration, with maximum pointer and stop, | |||||||||||||||||||||||||||||||
| 1 | scale to measure the flame height, multiple adjustable, | |||||||||||||||||||||||||||||||
| 1 | high current isolating transformer to heat the wire loop, with series connected vari-able ratio transformer, to set the temperature up to 960 °C, | |||||||||||||||||||||||||||||||
| 1 | miniature jacket thermocouple type K (NiCr/NiAl), with plug almost free from thermo-electric voltage and with compensating lead, | |||||||||||||||||||||||||||||||
| 1 | temperature indicating instrument to indicate the temperature of the glow-wire loop, with digital display, measuring range 0...1000 °C, class 0.5, can be readjusted, with compensation of the ambient temperature, | |||||||||||||||||||||||||||||||
| 1 | housing, desk shaped, with all necessary electrical components, with safety switch and 2 keys. | |||||||||||||||||||||||||||||||
